A reliable fiber optic power equipment is quite important in the era of high bandwidth. This hand held optic meter could help to inspect cables capabilities, calculate relative power loss, locate the fault and troubleshooting.
We dedicate to providing customers with practical fiber tools, which means that you have an affordable choice for the functional and constructive optic meter.
Calibrated Wavelength (nm): 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measurement Range (dBm): -70 to +3
Input: DC 9V/1000mA
Resolution (dB): Linear 0.1% / Non-linear 0.01dBm
Connector: SC, FC, ST/ Universal 2.5mm Adaptor
Operating Temperature(C): -10 - +60
Storage Temperature(C): -25 - +70
Relative Humidity: 90% (+30C)
Working Hours: >48 hours
Size: 11.8 x 6.8 x 3 cm
Increase the function of test wire
1 x Optical Power Meter
1 x Oxford Fabric Case
1 x User Manual

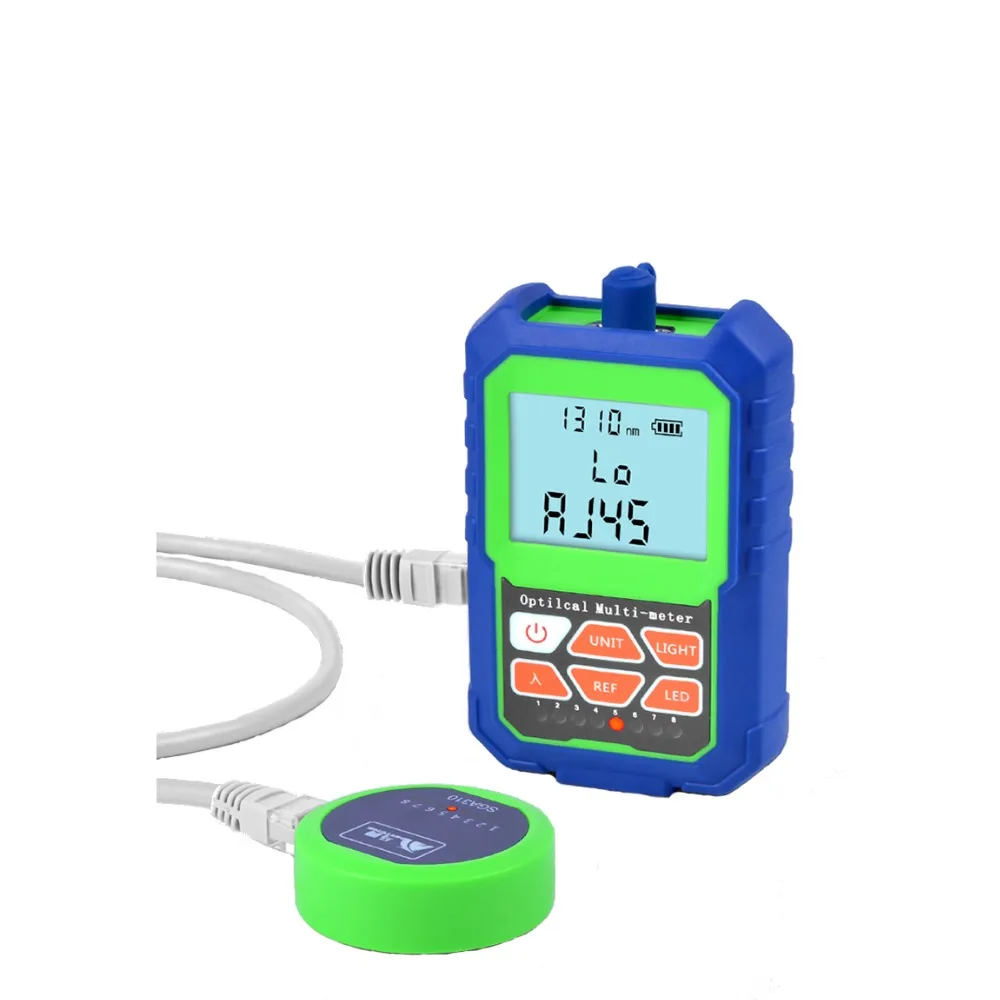

1.Function upgrade 2 in 1
Optical Power Meter + Network Cable Test
2.Cable test function
Operation method: Long press UNIT key for 3 seconds to open RJ45 test mode, then press to close RJ45 test mode
3 new LED lighting features for dark work environment
According to the actual test needs self-test parameters
At the same time press the λ + REF + UNIT button, enter the user mode, the screen displays the letter "CAL"
Press the "REF" and "UNIT" keys at the same time to restore the power meter to the factory state
Button UNIT, reducing 0.05dB
Press the power button. Save
Press REF + UNIT: restore factory settings
Press the key λ to switch the wavelength
Press REF, increase 0.05dB
Note: since the international air does not allow contains flammable and explosive goods, so the unity does not contain the battery delivery, thank you for understanding!
